City Bus low entry 12m Diesel
[/av_slide_full]
[/av_slideshow_full]
[av_two_third first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=”]
[av_heading tag=’h1′ padding=’30’ heading=’ICe 12 – Pure Electricity’ color=” style=” custom_font=” size=” subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]
[av_tab_container position=’top_tab’ boxed=’border_tabs’ initial=’1′]
[av_tab title=’Information’ icon_select=’no’ icon=’ue800′ font=’entypo-fontello’]
Appearance
| Length/Width (mm) | 12000/2550 |
| Height (mm) | 3340 |
| Interior Height (mm) | 2200 |
| Wheelbase (mm) | 5875 |
| Front overhang (mm) | 2700 |
| Rear overhang (mm) | 3425 |
| Kerb weight (kg) | 13300 |
| CVW (kg) | 19700 |
Sectional views
[/av_tab]
[av_tab title=’Equipments’ icon_select=’no’ icon=’ue800′ font=’entypo-fontello’]
| Motor | |
|---|---|
| Motor | Electric motor YTM280-CV4-H, Water cooling |
| Max Power (kw) | 200 |
| Max Torque (Nm) | 2400 |
| Emission | ZERO EMISSION |
| Charging | |
| Charging station | *60 kW / 150 kW / 300 kW |
| Charging time (h) | 5hours / 3hours / 1hour |
| Voltage (AC Volts) | *400V supply to charger |
| Standard specification | |
| Chassis Manufacturer | Zhengzhou Yutong Bus CO., Ltd. |
| Self-supporting structure, steel platform and aluminium body structure | |
| Batteries | Lithium ion battery, Capacity 295 kWh, 16 batteries ( 9 in rear, 7 in roof ), estimated lifespan 4000 cycles, air cooling |
| Range (km) | 320, at 20°C without AC ( according to test ) |
| Drive motor system | Yutong Drive motor system YTM280-CV4-H |
| Transmission | None |
| Braking system | Double pneumatic circuit, ABS / EBS |
| Steering | ZF 8098 |
| Electrical system | 24V ACTIA CAN system |
| Axles | ZF AV-132 rear axle, ZF RL-82EC front axle. Disc Brakes |
| Tyres | Michelin 275/70R22.5 |
| Suspension | Air suspension, 2 front 4 rear air bag. SACHS hydraulic two-way shock absorber, kneeling |
| Seats | 33 seats total, forward-looking 27 seats + 3 flap seats, wheel chair area, door 2+2+0 ( second seat row can be two “double” seats for grown up + child ) 27 seats total, forward-looking 23 seats + 3 flap seats, wheel chair area, door 2+2+2 |
| Driver seat | ISRI |
| Total passengers | Up to 64 standing places |
| Door | 2+2+0, Double pneumatic swing in front door, double pneumatic swing out middle door. 2+2+2 Double pneumatic swing in front door, double pneumatic swing out middle door, double swing in rear door |
| Heating/cooling | Heating under the driver’s seat ( 1,5 kW ), dashboard heating (5 kW), reverse air conditioning 32000 Kcal |
| Emission | ZERO |
| Other: Intelligent monitoring system, insulation resistance , electric leakage detection and monitoring system, 2 electrically controlled roof hatches, reversing camera, camera at middle door, monitor system VDO DTCO, clock, radio, stop request buttons, electric wheelchair access ramp, electrical adjusted and de-icing rear view mirrors, partition behind driver, sliding driver’s window, ticketing equipment. Other demands as required. | |
[/av_tab]
[/av_tab_container]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
Interior
Click on a picture to view a larger version
[/av_textblock]
[av_gallery ids=’576,577,578,579′ style=’thumbnails’ preview_size=’medium’ crop_big_preview_thumbnail=’avia-gallery-big-crop-thumb’ thumb_size=’square’ columns=’7′ imagelink=’lightbox’ lazyload=’avia_lazyload’ admin_preview_bg=”]
[av_hr class=’invisible’ height=’50’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]

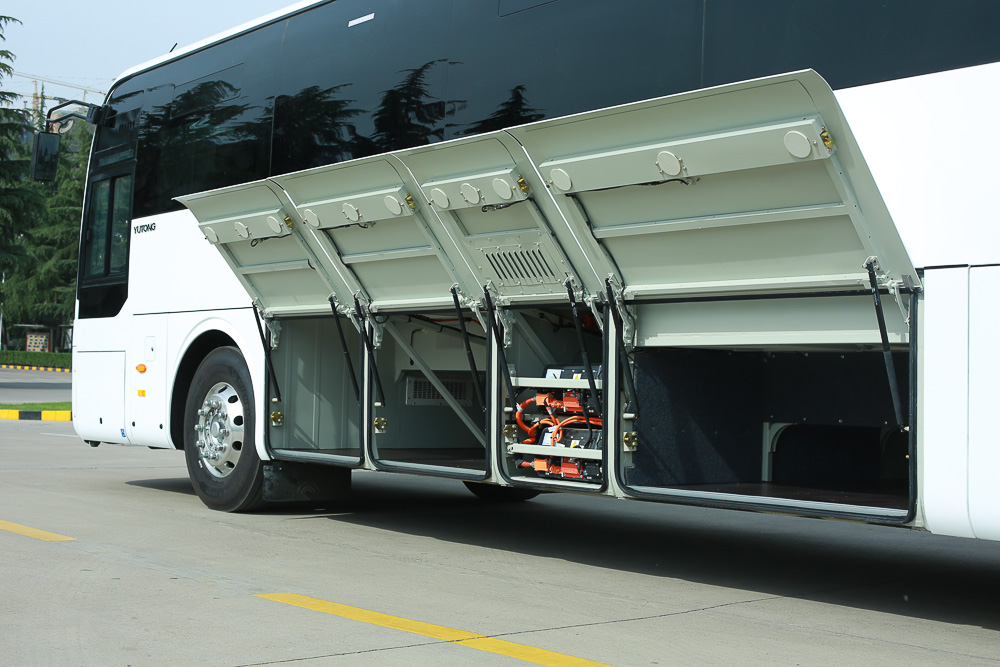

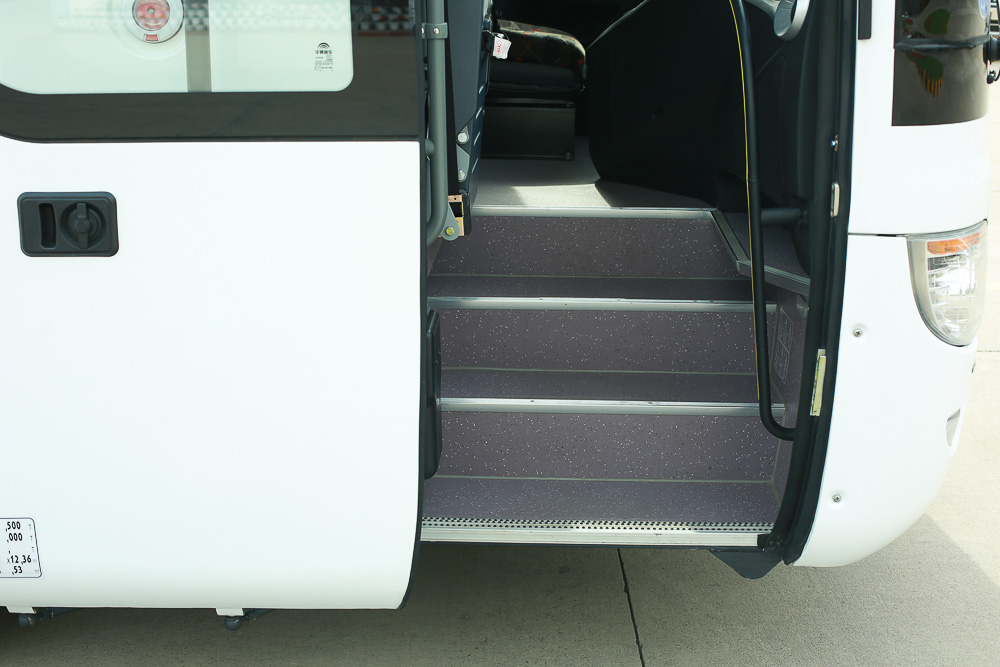

Exterior
Click on a picture to view a larger version
[/av_textblock]
[av_gallery ids=’549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575′ style=’thumbnails’ preview_size=’medium’ crop_big_preview_thumbnail=’avia-gallery-big-crop-thumb’ thumb_size=’square’ columns=’7′ imagelink=’lightbox’ lazyload=’avia_lazyload’ admin_preview_bg=’rgb(255, 255, 255)’]
[av_hr class=’invisible’ height=’250′ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ admin_preview_bg=”]
[/av_two_third][av_one_third min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=”]
[av_image src=’http://seast.ddns.net/wp-content/uploads/2018/03/ice12.png’ attachment=’430′ attachment_size=’full’ align=’center’ styling=’no-styling’ hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’ admin_preview_bg=”][/av_image]
[av_hr class=’invisible’ height=’50’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
32 2+2+1 36 2+2+0
